With young riders pushing the level of riding, smaller bikes need to keep up. The MISFIT 16” is the smallest bike in our line to feature a fully sealed Integrated Headset. Utilizing a CNC machined headtube, also drilled for thread-on Gyro tabs, the headset rests inside the head-tube rather than in press-in cups to avoid broken cups or the lower cup shifting when a fork is bent causing a tight spot in your headset. Also drawing influence from its aftermarket counterpart we’ve lightened up the frame and fork for ’26 creating a bike as limitless as riders imaginations.
Features:
- Misfit 16″
- TT Size: 16.25”
- Frame: Cro-Mo Top & Down Tubes
- Geometry: 16
- Headset: Integrated W/gyro Holes Integrated
- BB: Mid Sealed
- Bars: 2-piece 7” X 24”
- Fork: New 31mm Offset Cro-mo Steerer
- Stem: Mini Top Load
- Seat: 25.4mm Flatter/ More Padded Integrated Combo

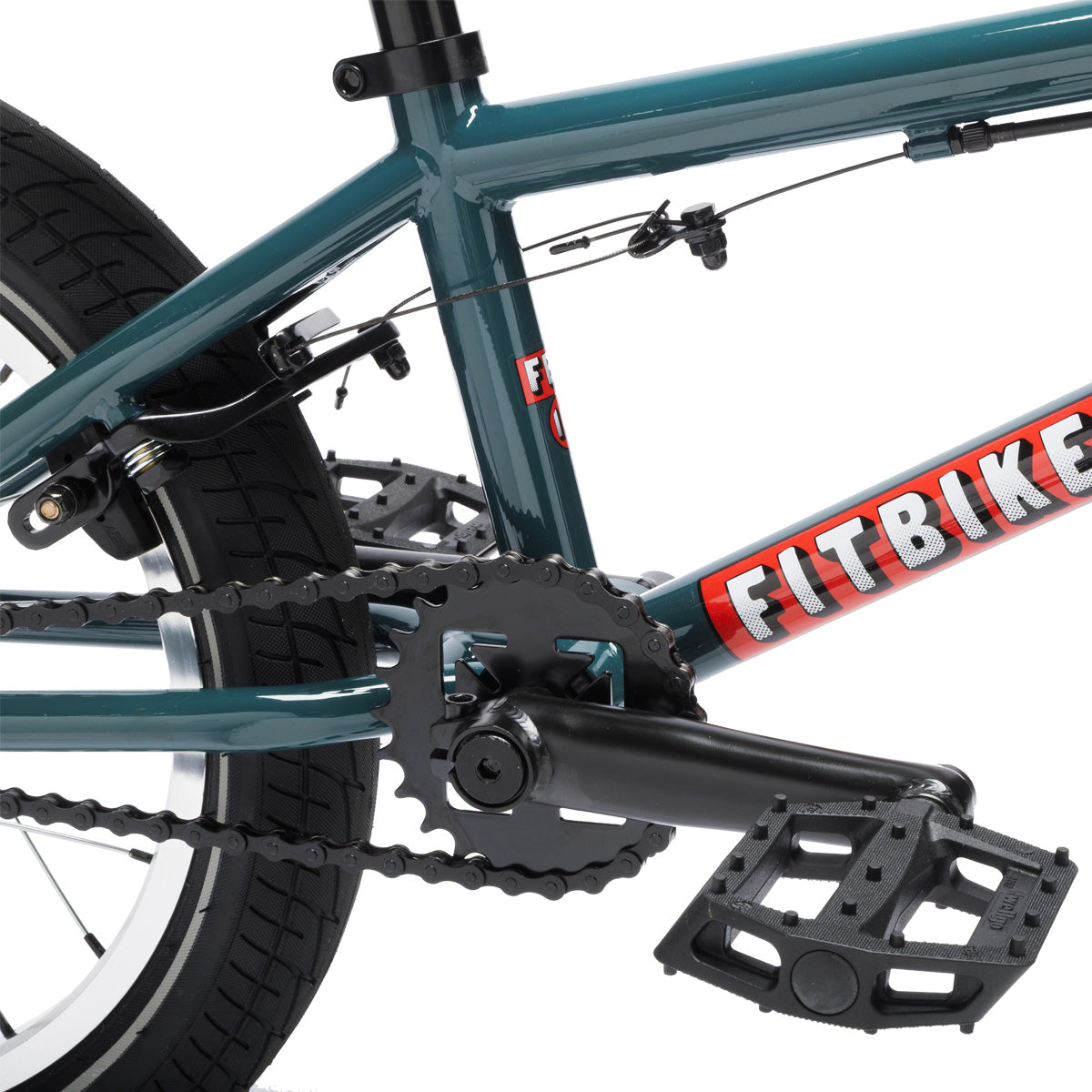

- Cranks: Tubular Cro-mo 127mm
- Sprocket: Fit Bite 24T
- Pedals: Nylon Platform 9/16”
- Front Wheel: Wider 20h Single Wall W/unsealed Hub
- Rear Wheel: Wider 20h Single Wall W/sealed 9t Cassette
- Tires: Fit OEM 2.25”

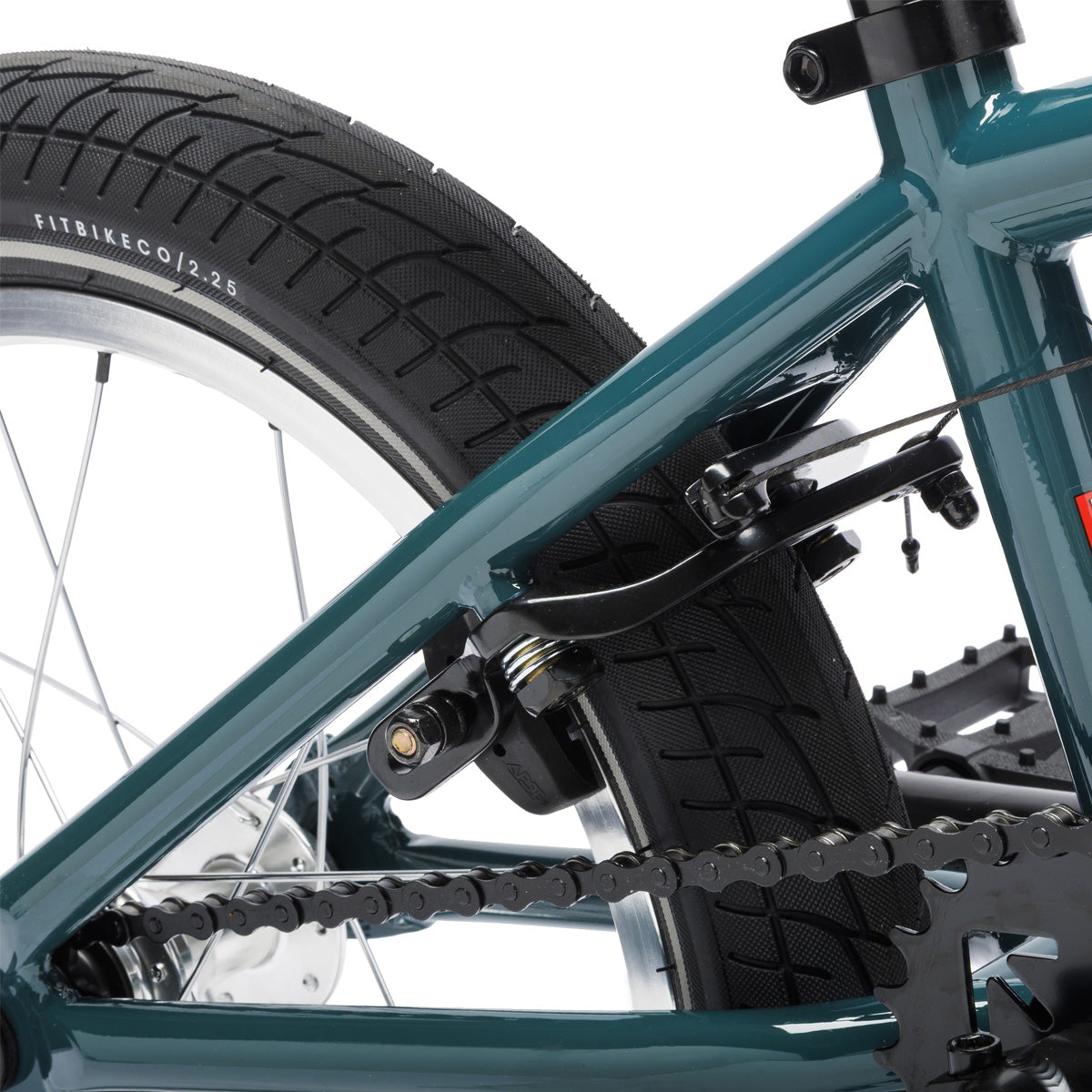

- Brakes: U-brake W/low Tension Springs, Short Reach Lever, Linear Cable
- Misc: 17mm Rear Axle Nuts
